Lithium Battery Crush Penetrate Testing Equipment Battery Safety Testing Equipment

Name: Lithium Battery Crush Penetrate Testing Equipment Battery Safety Testing Equipment
Brand: Gaoxin
Price: 1 USD

Buy cheap Lithium Battery Crush Penetrate Testing Equipment Battery Safety Testing Equipment product

Brand Name : Gaoxin

Model Number : GX-5067-B

Certification : ISO 9001:2008

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : FOB Shenzhen, T/T

Supply Ability : 10 set/batch

Delivery Time : 20 working days

Packaging Details : Non-fumigation wooden box

Material : Stainless steel

Function : Battery crush test

Force range : 0-20 KN

Driver : Hydraulic pressure

Crush space : 300 × 300× 300mm , 1/3 Teflon tape(resistance to high temperature and corrosion)

Stroke : 300MM

Structure : Double visual explosion proof glass，Exhaust fan and smoke tube in the back

Power : 380V, 50HZ， 10A

Weight : 230KG

Contact Now

Lithium Battery Crush Penetrate Testing Equipment

1. Product Name:Battery crush and puncture machine

2. Product Model:GX-5067-B

3. Test Methods:

Crush Test:

The battery is to be crushed between two flat surfaces. The force for the crushing is to be applied by a hydraulic ram with a 32mm diameter piston. The crushing is to be continued until a pressure reading of 17.2 Mpa is reached on the hydraulic ram, resulting in an applied force of 13KN.Once the maximum pressure has been obtained it is to be released.

Puncture Test:

Put the battery into the testing room and use the steel needle with the diameter of 2-8mm and speed of 10-40mm/s to penetrate the battery, keep for 5 seconds. The test should be conducted under the condition of 20°C±5°C and ventilation.

4.Test standard:

SJ/T11169-1998(equal to UL 1642:1995),SJ/T11170-1998(equal to UL2054:1997),UL 1642[13],GB8897.4—2002, IEC60086-4:2000

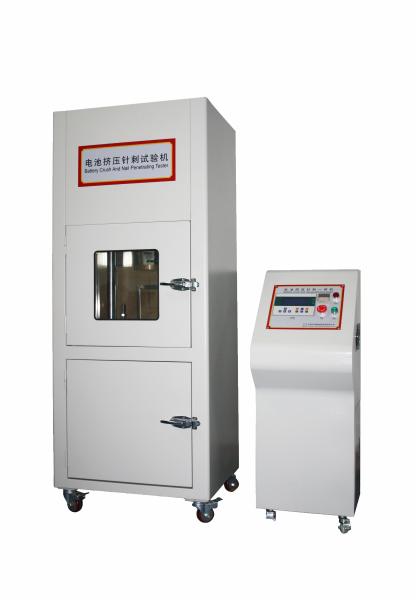

5. Product Picture

Lithium Battery Crush Penetrate Testing Equipment Battery Safety Testing Equipment

1.How can we guarantee quality?
 Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

 2.What can you buy from us?
 Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
 environmental test chamber, paper testing machine etc.

 3.What details are required for a quotation?
 What is the test standard
 What product or material testing from this machine
 What is the Test object size
 What is you want the machine appropriate size

 4.Can I make changes before I ship?
 No,it can not change if machine finished

 5.When will my order ship?
 Need 10-45 workdays base on which type the the machine

 6.How can I track my order?
 We will send the schedule by each stage
